Elbow 90

This elbow fitting features a brass interior threaded section to direct the flow of water at a 90 degree angle between adjoining pipes.

Get in Touch Find a Dealer

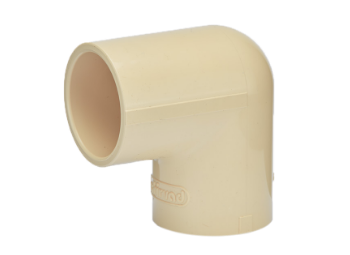

Ashirvad_CPVC_Fitting_Elbow 90⁰

Looking to upgrade your CPVC water pipe? Reach out and we’ll guide you.

Get In Touch

Technical Specifications

Dimensions in cms

Size ID OD WT SL L H
½ * ½” 16.080 21.260 2.59 12.700 38.00 46.0
¾ * ½” 22.450 27.630 2.59 17.780 43.00 51.0
¾ * ¾” 22.450 27.630 2.59 17.780 41.20 54.0
1 * ½” 28.830 33.560 2.59 22.860 52.60 55.6
1 * ¾” 28.830 33.560 2.59 22.860 54.85 57.0
1 * 1” 32.707 37.887 2.59 26.416 58.10 61.9
1 ¼ * ½” 35.200 41.560 3.18 27.940 55.13 64.6
1 ¼ * ¾” 36.200 42.560 3.18 27.940 55.00 68.8
1 ¼ * 1 ¼” 37.200 43.560 3.18 27.940 63.70 75.5
Size ID OD WT SL H
2 1⁄2” 73.38 87.40 7.01 44.45 132
3” 89.31 104.55 7.62 47.63 150
4” 114.76 131.92 8.58 57.15 182
Size ID OD WT SL H
2 1⁄2” 73.38 83.68 5.15 44.45 129
3” 89.31 100.29 5.49 47.63 148
4” 114.76 126.80 6.02 57.15 182
6” 168.10 182.32 7.11 77.80 250

More Details

Elbow 90 SCH 80

Elbow 90 SCH 40
