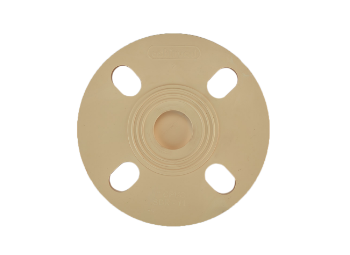

Flange (End Cap open with rubber gasket)

A flange is a useful CPVC fitting that improves the usability of connecting pipes. Typically, it is a circular disc-like plastic component that helps in connecting two adjoining pipes through screws or bolts that can easily be undone for repair and maintenance or replacement of parts in use. In this variation the end cap is open.

Dimensions in cms

Size ID OD WT SL L H PCD
1" 28.83 33.56 2.59 22.86 115 27.0 85.58
1 1⁄4” 35.20 41.56 3.18 27.94 126 32.0 91.53
1 1⁄2” 41.66 49.18 3.76 33.02 135 39.0 99.2
2” 54.38 64.18 4.90 43.18 160 49.0 120.6
2 1⁄2” 73.38 83.68 5.15 44.45 176 50.7 134.06
3” 89.31 100.29 5.49 47.63 188 55.3 148.0
4” 114.76 126.80 6.02 57.15 225 68.0 189.0
6” 168.10 182.32 7.11 77.8 278 87.0 241.3
Advantages
  • - Allows for easy dismantling and repair of connecting pipes.
