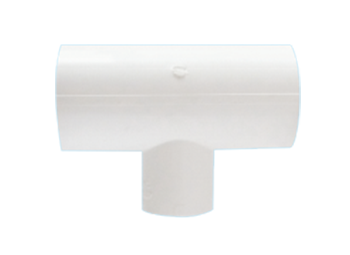

Reducer Tee (SCH 80)

A reducer tee is used in the plumbing system to regulate water-flow within the plumbing system. This uPVC fitting has a vertical pipe running from end to end complimented with a pipe socket of a different diameter at a 90-degree angle. The reducer tee is handy for connecting pipes across two directions and circumferences to optimize water-flow across different pressure pipes.

Get in Touch Find a Dealer
Ashirvad_uPVC Aqualife_Fitting_Reducer Tee_SCH80

Looking to upgrade your CPVC water pipe? Reach out and we’ll guide you.

Get In Touch

Technical Specifications

Size ID-1 OD-1 WT-1 SL-1 ID-2 OD-2 WT-2 SL-2 L H
3⁄4 x 3⁄4 x 1⁄2 26.97 34.79 3.91 25.4 21.64 29.1 3.73 22.23 56 80
1 x 1 x 1⁄2 33.78 42.88 4.55 28.58 21.64 29.1 3.73 22.23 67 92
1 x 1 x 3⁄4 33.78 42.88 4.55 28.58 26.97 34.79 3.91 25.4 70 92
1¼x1¼x½ 42.55 52.25 4.85 31.75 21.64 29.1 3.73 22.23 70 108
1¼x1¼x¾ 42.55 52.25 4.85 31.75 26.97 34.79 3.91 25.4 73 108
1¼x1¼x1 42.55 52.25 4.85 31.75 33.78 42.88 4.55 28.58 75 108
1½x1½x½ 48.72 58.88 5.08 34.93 21.64 29.1 3.73 22.23 75 117
1½x1½x¾ 48.72 58.88 5.08 34.93 26.97 34.79 3.91 25.4 82 117
1½x1½x1 48.72 58.88 5.08 34.93 33.78 42.88 4.55 28.58 82 117
1½x1½x1¼ 48.72 58.88 5.08 34.93 42.55 52.25 4.85 31.75 87 117
2 x 2 x 1⁄2 60.78 71.86 5.54 38.1 21.64 29.1 3.73 22.23 88 100
2 x 2 x 3⁄4 60.78 71.86 5.54 38.1 26.97 34.43 3.73 25.4 93 135
2 x 2 x 1 60.78 71.86 5.54 38.1 33.78 42.88 4.55 28.58 95 135
2 x 2 x 1¼ 60.78 71.86 5.54 38.1 42.55 52.25 4.85 31.75 100 135
2 x 2 x 1½ 60.78 71.86 5.54 38.1 48.72 58.88 5.08 34.93 104 135
2½x2½x2 73.56 87.58 7.01 44.45 60.78 71.86 5.54 38.1 82.2 161
3 x 3 x 2½ 89.51 104.75 7.62 47.63 73.38 83.7 5.16 44.45 95.45 181.1

Where Can Reducer Tee (SCH 80) Be Used?

apartments

Independent Homes
app- commercial

Commercial Buildings
app- highrise

High-Rise Buildings
app - hospitality

Hospitality Buildings
app - retail shop

Retail & Shopping Complexes
