Name: Elbow 45 (SCH 80)
Brand: Ashirvad

new Online BIM Library

About us
Back
Products and Solutions
Back
CPVC Range (Hot and Cold)

Ashirvad FlowGuard-Plus® CPVC

UPVC Range (Potable Cold Water)

Ashirvad uPVC Aqualife+ Plumbing System

Ashirvad uPVC Aqualife Plumbing System

Ashirvad uPVC Aqualife Reclaim Plumbing System

SWR Range (Soil, Waste and Rainwater)

SWR Plumbing System

Ashirvad Low Noise SWR

Ashirvad Active Drainage Ventilation System

Ashirvad UGD Solutions

Manholes & Inspection Chambers

Water Extraction Solutions

Column Pipes

Casing Pipes

Water Transmission Solutions

HDPE Pipes

Agri Pipes

uPVC Korrosafe Pipes and Fittings

BlazeMaster® Fire Protection System

Grease and Solid Interceptors

Ashirvad Sewage Treatment Plant

HDPE Pipes

Electrofusion Fittings

Dynaflo PVC-O Pipes

Akasison Siphonic Roof Drainage System

Water Storage Tanks

Y- Strainer

Ashirvad Slimpro Concealed Cistern

Ashirvad Concealed Diverters

WC PAN Connectors

Ashirvad Waste Outlets & Traps
Plumbing Pipes and Fittings

Underground Drainage

Agriculture Pipes and Fittings

Industrial Solutions

Fire Protection System

Waste Water Management

Infrastructure Solutions

Water Tanks & Y Strainer

Bath and Kitchen Solutions
CPVC Range (Hot and Cold)

Ashirvad FlowGuard-Plus® CPVC

UPVC Range (Potable Cold Water)

Ashirvad uPVC Aqualife+ Plumbing System

Ashirvad uPVC Aqualife Plumbing System

Ashirvad uPVC Aqualife Reclaim Plumbing System

SWR Range (Soil, Waste and Rainwater)

SWR Plumbing System

Ashirvad Low Noise SWR

Ashirvad Active Drainage Ventilation System

Ashirvad UGD Solutions

Manholes & Inspection Chambers

Water Extraction Solutions

Column Pipes

Casing Pipes

Water Transmission Solutions

HDPE Pipes

Agri Pipes

uPVC Korrosafe Pipes and Fittings

BlazeMaster® Fire Protection System

Grease and Solid Interceptors

Ashirvad Sewage Treatment Plant

HDPE Pipes

Electrofusion Fittings

Dynaflo PVC-O Pipes

Akasison Siphonic Roof Drainage System

Water Storage Tanks

Y- Strainer

Ashirvad Slimpro Concealed Cistern

Ashirvad Concealed Diverters

WC PAN Connectors

Ashirvad Waste Outlets & Traps
Services & Offerings
Back
- Design & Specification
- Installation & Training
Careers
Back
News & Events
CSR
Resources
Back
Contact us

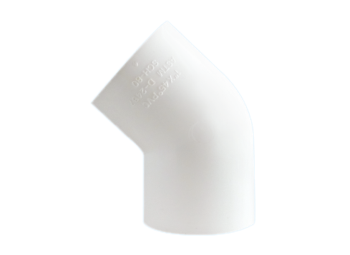

This uPVC fitting helps divert the flow of cold water in the plumbing system. The Elbow 45 fitting is useful for directing diagonal flow of water through the piping network.

Technical Details

Size	ID	OD	WT	SL	L	H
½”	21.64	29.1	3.73	22.23	45	59
¾”	26.97	34.79	3.91	25.4	58	68
1”	33.78	42.88	4.55	28.58	60	74
1 ¼”	42.55	52.25	4.85	31.75	77	85
1 ½”	48.72	58.88	5.08	34.93	83	88
2”	60.78	71.86	5.54	38.1	98	115
2 ½”	73.56	87.58	7.01	44.45	130	168
3”	89.5	104.74	7.62	47.63	126	188
4”	114.99	132.11	8.56	57.15	145	235
